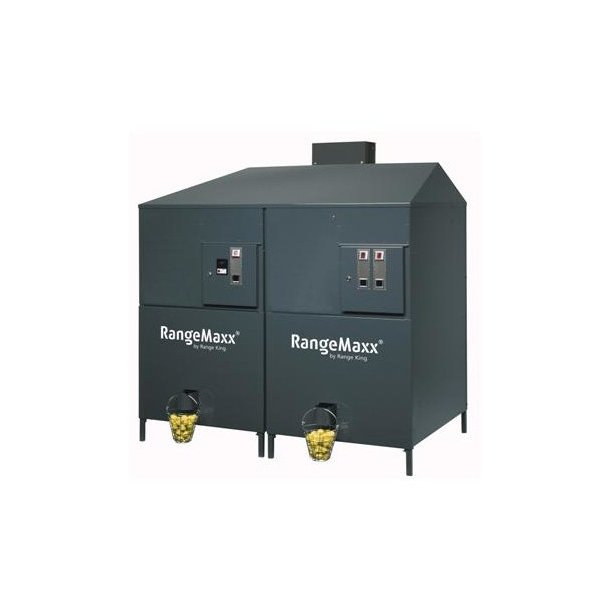

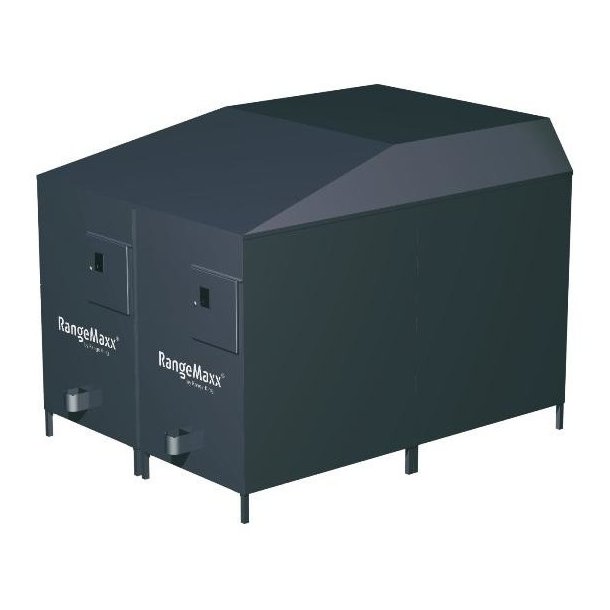

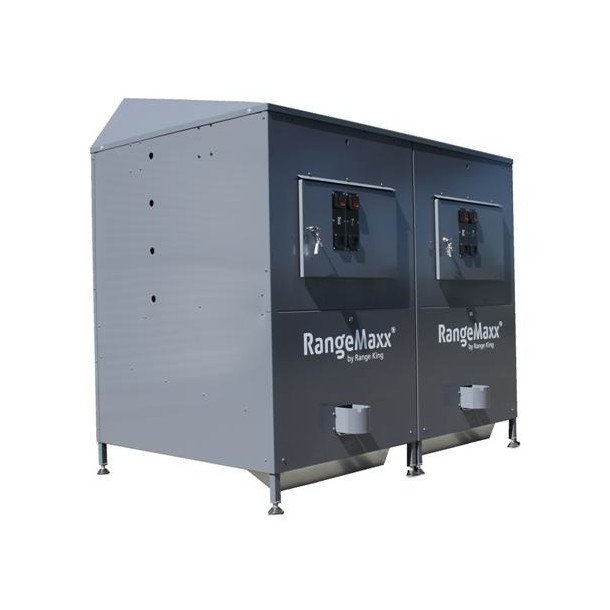

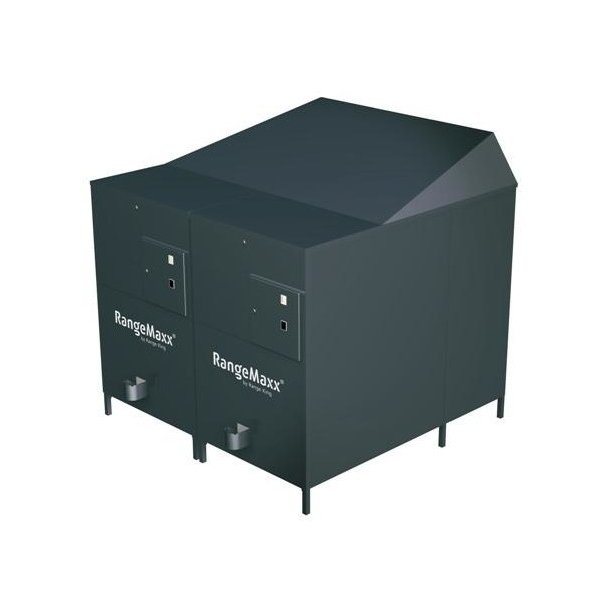

Dispenser Range Maxx Twin
Equipped with not just one but two unique, reliable and sturdy dispensing mechanisms that are quick and accurate. They dispense in one single movement an exact even quantity between 12 and 24 balls in less than 3 seconds and has integrated light-duty washing installations.
The Range Maxx Twin golf ball dispensers are filled through an opening at the backside by either elevator or a blowing system.
Large storage capacity compared to compact dimensions (based on model):
- 31320: 20.000 balls
- 31321: 26.000 balls
- 31322: 35.000 balls
- 31323: 51.000 balls
| 31320 | 31321 | 31322 | 31323 | |
| Capacity (balls) | 20.000 | 26.000 | 35.000 | 51.000 |
| Size (w x d x h) | 185 x 125 x 165 cm | 185 x 125 x 185 cm | 185 x 177 x 185 cm | 185 x 250 x 185 cm |
| Weight (empty) | approx 450 kg | approx 450 kg | approx 500 kg | approx 650 kg |
| Weight (full) | approx 1.450 kg | approx 1.750 kg | approx 2.250 kg | approx 3.150 kg |
General information about all the Twin models:
- Solid steel exterior, galvanized and powder coated
- Stainless steel lock cams prevent burglary
- The level of balls is indicated by holes on every side
- Large front door enables integration of many different payment systems (order separately)
(counter and adjustable set feet included)
Technical details:
- Dispensing cycle: 2-3 seconds. Dispensing quantities per cycle: 1 row: 6,7,8,9,10, 11 or 12 balls 2 rows (standard): 12,14,16,18,20,22 or 24 balls
- Adjustable quantity of 1-4 cycles per payment
- Power: 230 VAC. Power consumption: 5-200 W
- Water inlet: 1/2" (garden hose dimension). Water drain: 40 mm
