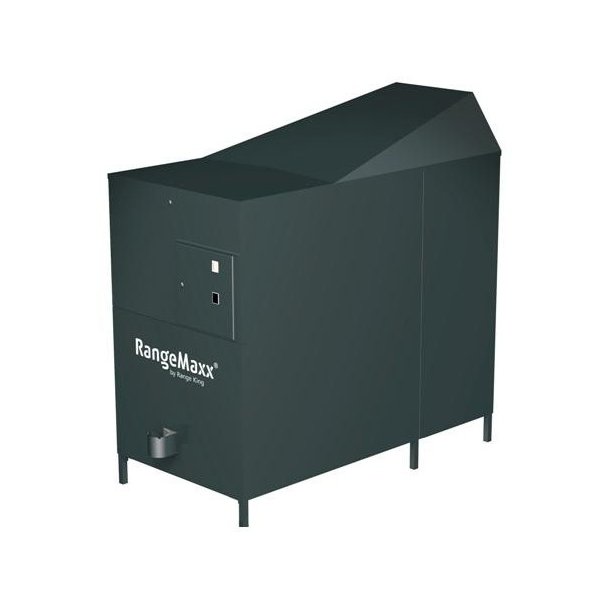

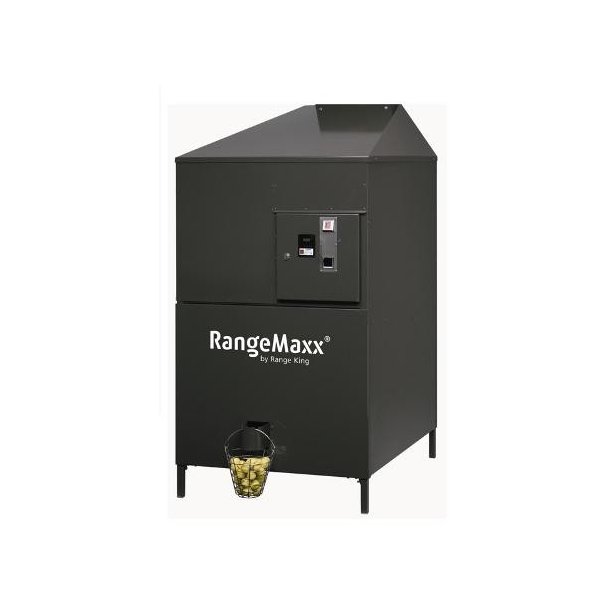

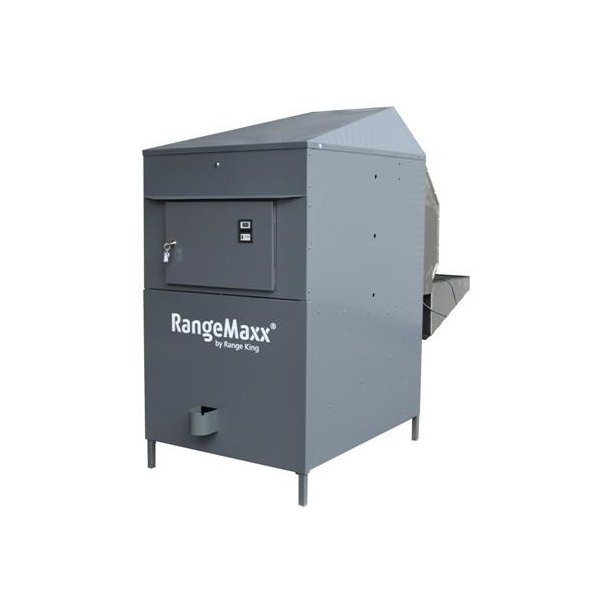

Dispenser Range Maxx+
Equipped with a unique, reliable and sturdy dispensing mechanism that is quick and accurate. It dispenses in only one single movement an exact even quantity between 12 and 24 balls in less than 3 seconds and has integrated light-duty washing installation.
The Range Maxx+ golf ball dispensers are filled through an opening at the backside by either elevator or a blowing system.
Large storage capacity compared to compact dimensions (based on model):
- 31310: 10.000 balls
- 31311: 13.000 balls
- 31312: 17.000 balls
31310 | 31311 | 31312 | |
Capacity (balls) | 10.000 | 13.000 | 17.000 |
Size (w x d x h) | 92 x 125 x 165 cm | 92 x 125 x 185 cm | 92 x 177 x 185 cm |
Weight (empty) | approx 270 kg | approx 300 kg | approx 300 kg |
Weight (full) | approx 900 kg | approx 1.000 kg | approx 1.150 kg |
General information about all three models:
- Solid steel exterior, galvanized and powder coated
- Stainless steel lock cams prevent burglary
- The level of balls is indicated by holes on every side
- Large front door enables integration of many different payment systems (order separately)
(counter and adjustable set feet included)
Technical details:
- Dispensing cycle: 2-3 seconds. Dispensing quantities per cycle: 1 row: 6,7,8,9,10, 11 or 12 balls 2 rows (standard): 12,14,16,18,20,22 or 24 balls
- Adjustable quantity of 1-4 cycles per payment
- Power: 230 VAC. Power consumption: 5-200 W
- Water inlet: 1/2" (garden hose dimension). Water drain: 40 mm
